ABB PRO-33.0 Three-phase String Inverter

ABB PRO-33.0 Three-phase String Inverter

ABB’s three-phase PRO-33.0 string inverter is designed to meet the needs of the entire supply chain – from system integrators and installers to end users. The inverter offers cost-efficiency in a high power, wall-mountable package with very high conversion efficiency.

The all-in-one design, with built-in and monitored PV plant protection devices, reduces the need for costly external devices. The high maximum DC input voltage of up to 1100 V increases PV system design flexibility.

The inverter is available in 33 kW and is designed for medium and large de-centralized PV systems either on large-scale commercial and industrial rooftops or ground-mounted PV plants up to megawatt (MW) sizes.

Highlights of ABB PRO-33.0:


  • Compact, high power wall-mountable package

  • High maximum DC input voltage of up to 1100 V

  • Configurable all-in-one design

  • Advanced grid support functions

  • Safe and intuitive user interface

  • Robust enclosure, with IP65 rating suitable for outdoor installation


Download ABB PRO-33.0 Service Menu Guide

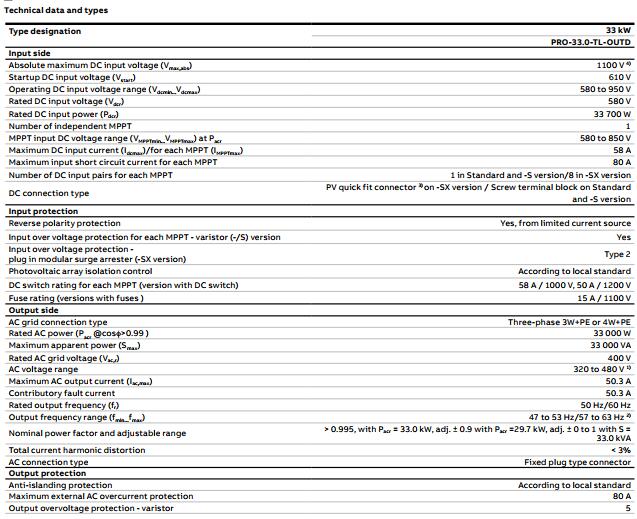

You can read the datasheet below and get more information:

ABB string inverters PRO 33.0 TL OUTD
